Hydraulic Lift For Car Garage
Capacity
1500 – 5000 kgs
Application
Skyscrapers, Automobile Showrooms, Shopping Malls, Multilevel parking facilities.
Speed
0.32 – 0.5 mt/ps

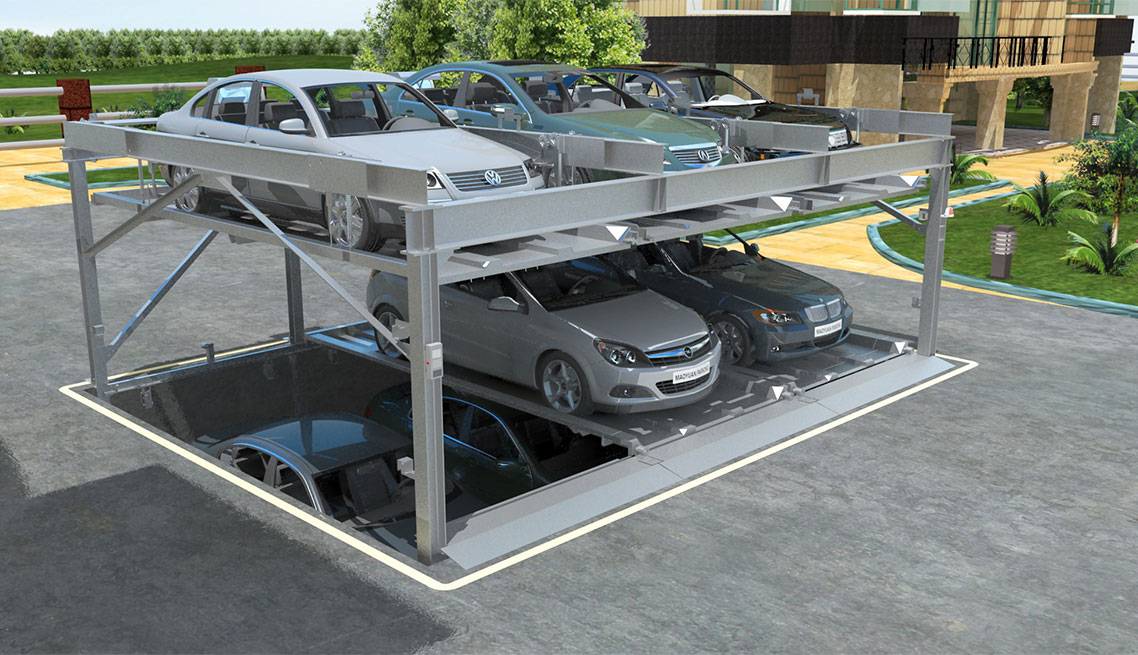

Sigma categorise parking solution products in two ranges: Automobile Elevators and Parking Elevators used for multi-storied movement and parking of cars and two-wheelers. Urbanisation leads to less parking spaces, specifically in old structures, nowadays planner designs their spaces into efficient utilisation where they double up the available space.
We design and develop a wide range of car and parking lifts that are fabricated using high-grade raw material, sourced from reliable vendors across worldwide and tested on various quality parameters.
HYDRAULIC
SYSTEM
SAFETY
LOCK
EMERGENCY
STOP
KEY
SWITCH
ANTI-SLIP
PLATFORM
Features at a glance
- Fully customised and designed as per available space.
- Easy to install within a stipulated time frame.
- Modern approach for less parking space utilisation.
- Mobility of automobiles with least power consumption.
Technical Specification

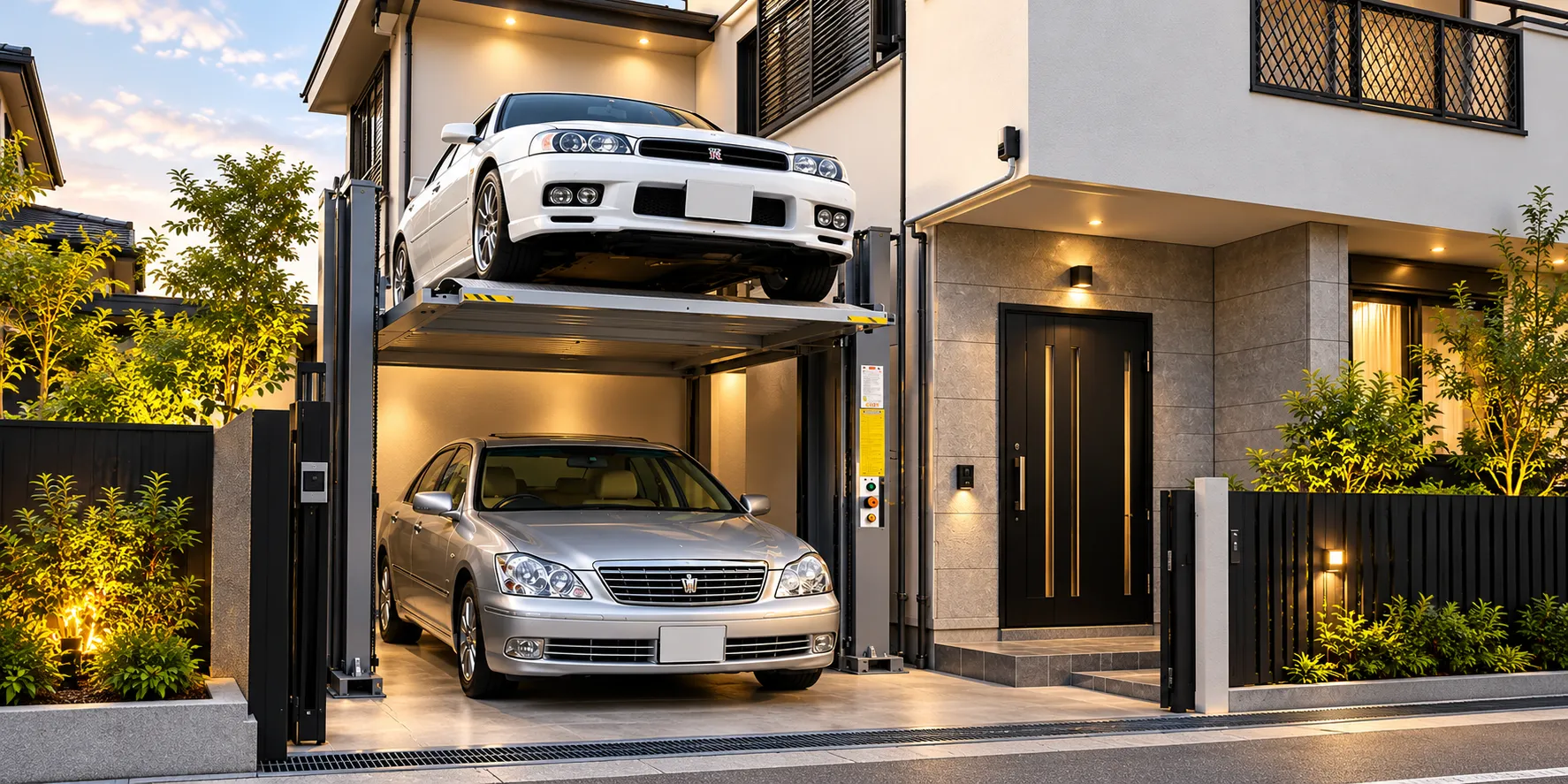

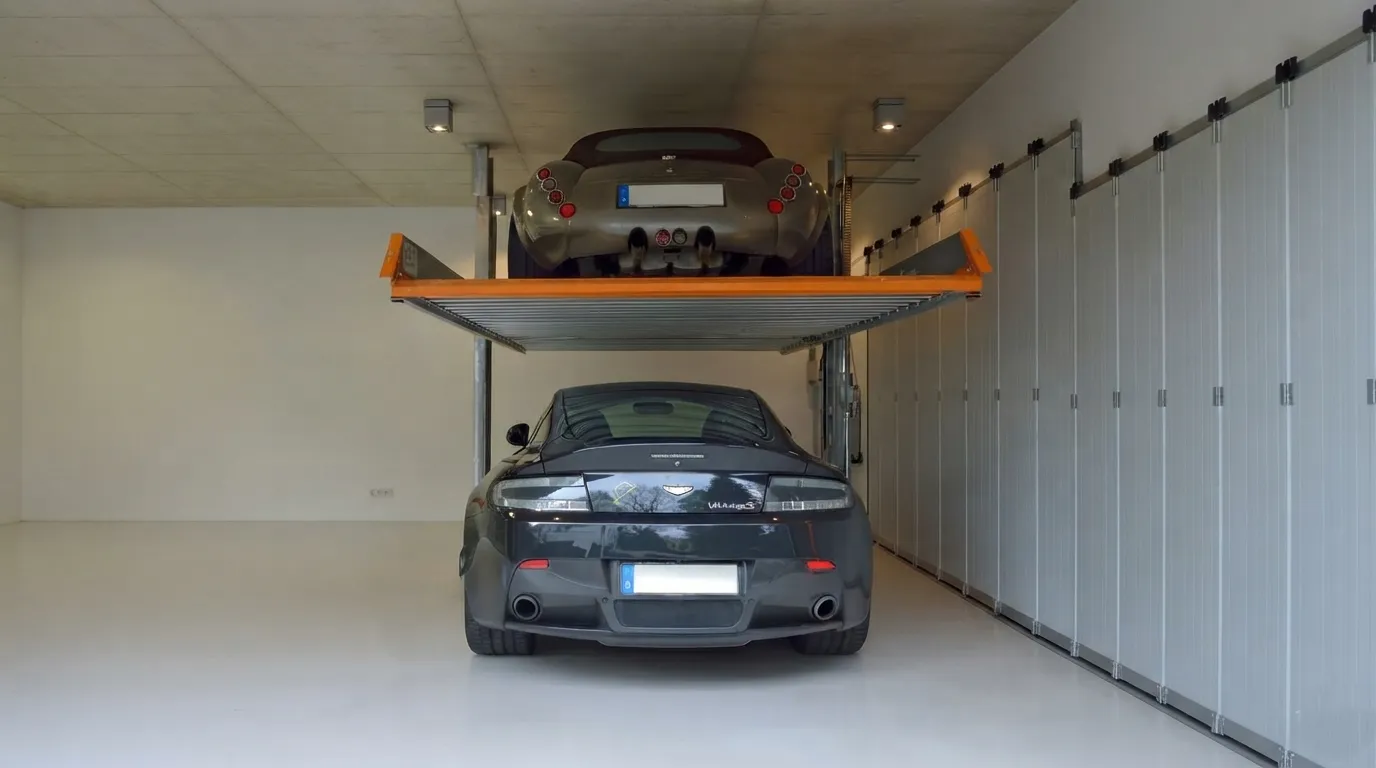

| MODEL | TWO POST LIFTS |
|---|---|
| No. of Parking | 2 Cars |
| Max. Lifting Load | 2000 kg |
| Total Width – Length | 2332 mm – 4300 mm |
| Drive through Width | 2084 mm |
| Total Height | 3688 mm |
| Max. Lifting Height | 2100 / 1800 mm |
| Lifting / Lowering Time | 40 – 50 sec |
| Electrical Required | 230 – 415V, 1/3 Ph, 50 Hz |
| Working By | Hydraulic System |
| Lock Release | Electric Auto Release |
Frequently Asked Questions
Frequently Asked Questions

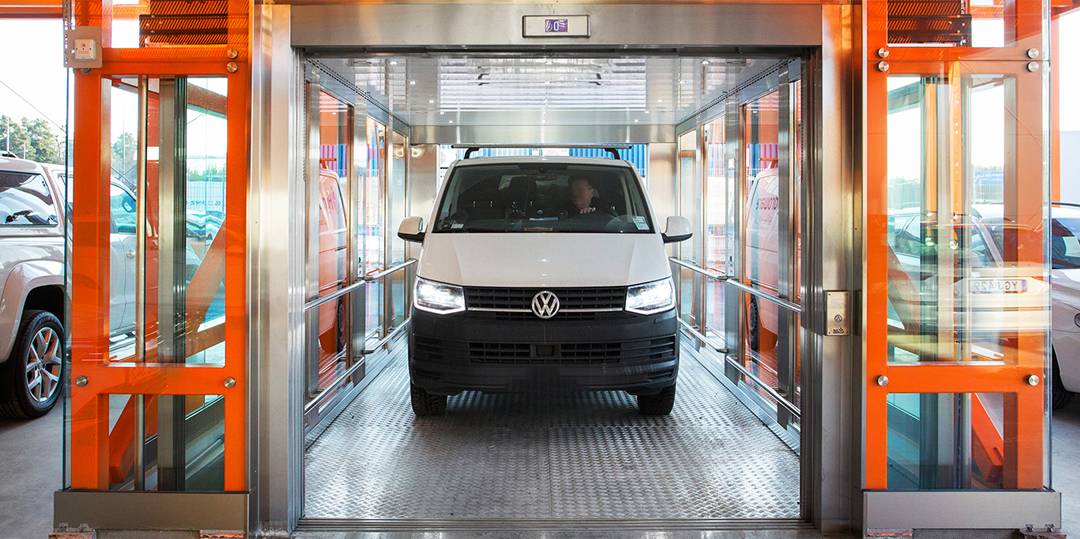

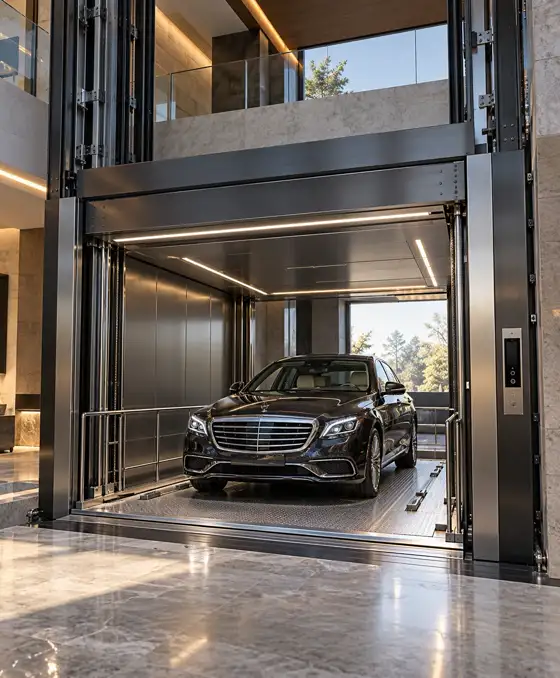

What is a car elevator used for?

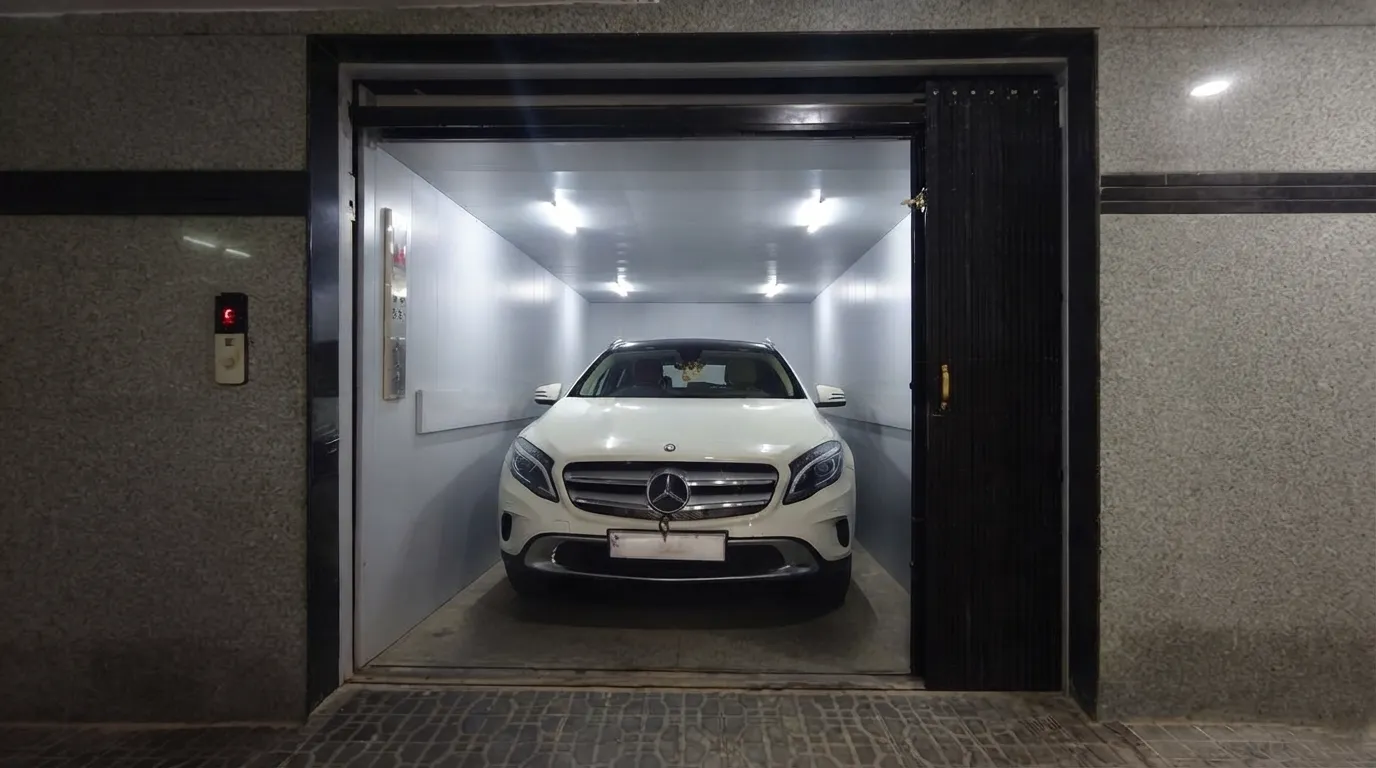

A car elevator (vehicle lift) moves cars between floors in showrooms, basements and stack or tower parking. It saves ramp space and makes parking possible on compact urban plots.
How much weight can a car elevator carry?
Sigma car elevators are engineered to the required vehicle weight, typically from around 2,000 kg upward, sized for sedans, SUVs or multiple vehicles based on your site.
